Spanners

Double Open Ended Spanner – Long Pattern
Double Open Ended Spanner – Long Pattern

Double Open Ended Spanner – Long Pattern

JFT - 1103
  • Drop Forged Chrome - Vanadium Steel
  • Hardened and Tempered
  • Each Head Set at 15° Angle
  • Available with or without Polished Heads



MM S.A.E. Length Qty.
6x7 1/4x5/16 122 800
8x9 - 140 600
10x11 3/8x7/16 157 400
12x13 7/16x1/2 172 300
14x15 1/2x9/16 190 200
16x17 5/8x11/16 205 160
18x19 3/4x25x32 222 120
20x22 13/16x7/8 236 100
21x23 - 250 80
24x26 15/16x1 266 60
24x27 7/8x1.1/16 266 60
25x28 15/16x1.1/8 280 40
27x32 15/16x1.1/8 302 40
30x32 - 302 20


Set no Pcs MM Qty/Crt
6m 6 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 40

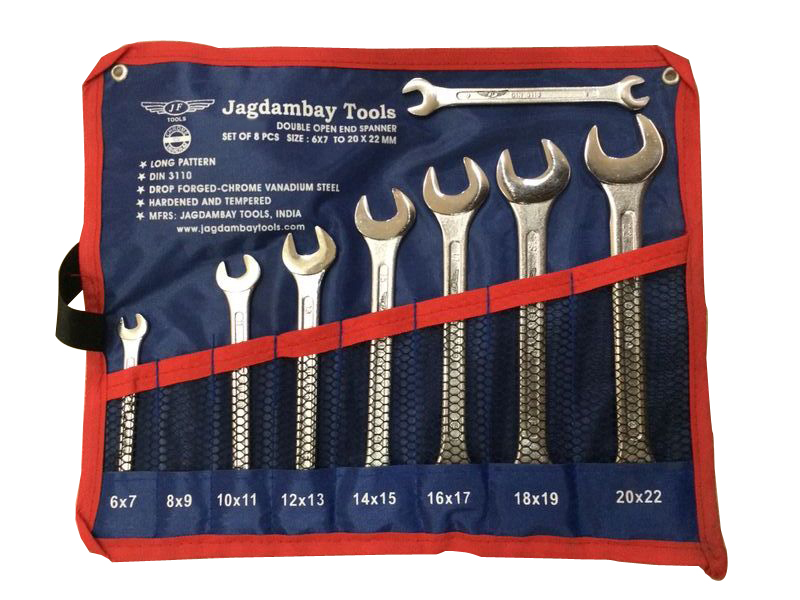

8m 8 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22 20
10m 10 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27 20
12m 12 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 26,
25 x 28, 27 x 32		 16
122m 12 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27,
25 x 28, 30 x 32		 16
Back
Next


OEM Available

We have OEM experience of over 30 years and able to meet any customised requirements with proper guidance of our technical/engineering team to supply the products with time bound delivery schedule &

UNDER THE BUYER's REGISTERED BRAND
