Spanners

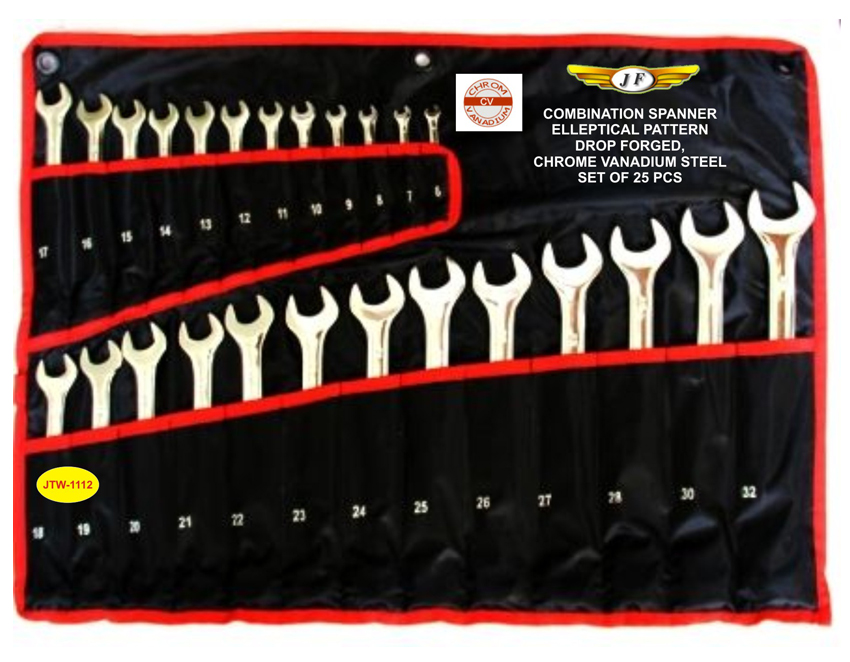

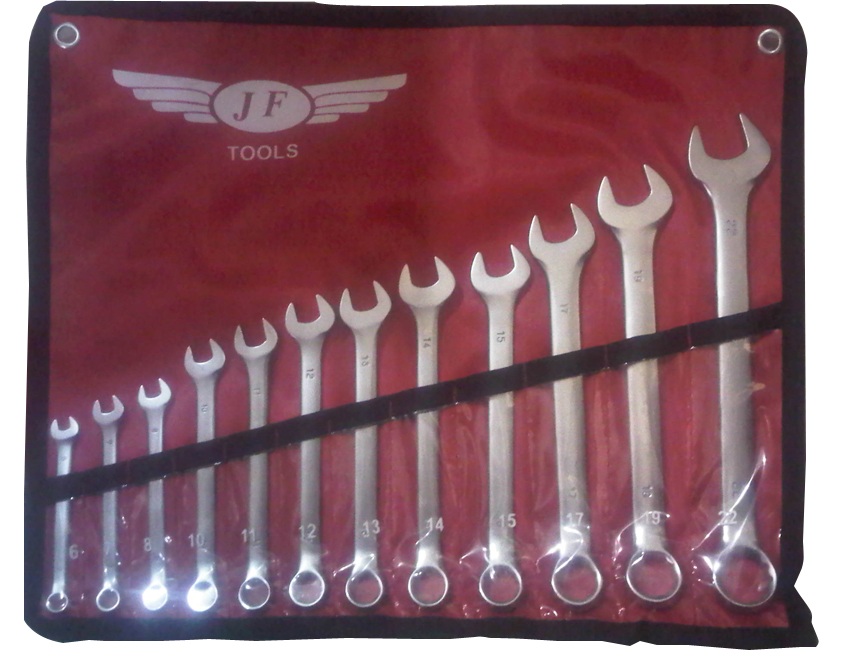

Combination Spanner – Elliptical Pattern

Combination Spanner – Elliptical Pattern

Combination Spanner – Elliptical Pattern

Combination Spanner – Elliptical Pattern

JFT - 1112
A. Fully Polished
B. Satin Finish

  • DIN 3113
  • Drop forged chrome vanadium steel
  • Hardened and Tempered
  • Each Head Set at 15 Angle
  • Available in Chrome Finish & Satin Finish
  • Elliptical Pattern


MM S.A.E. Length Qty.
6 1/4 100 1200
7 - 110 1200
8 5/16 120 1000
9 - 130 800
10 3/8 140 800
11 7/16 150 600
12 - 160 500
13 1/2 170 400
14 9/16 180 400
15 - 190 300
16 5/8 200 300
17 11/16 210 300
18 - 220 200
19 3/4 230 200
20 - 240 200
21 13/16 250 200
22 7/8 260 200
23 15/16 270 160
24 1 280 160
25 - 290 120
26 1.1/16 300 120
27 1.1/8 310 120
28 - 320 60
29 - 330 60
30 - 340 60
32 3/4 360 60


Set no Pcs MM Qty/Crt
5m 5
8, 10, 12, 14, 17		 80
6m 6
8, 10, 12, 13, 14, 17		 60
8m 8
8, 10, 11, 12, 13, 14, 17, 19		 40
10m 10
10, 11, 12, 13, 14, 15, 16, 17, 18, 19		 40
12m 12
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22		 30
14m 14
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24		 16
26m 26 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32 8
Back
Next


OEM Available

We have OEM experience of over 30 years and able to meet any customised requirements with proper guidance of our technical/engineering team to supply the products with time bound delivery schedule &

UNDER THE BUYER's REGISTERED BRAND
